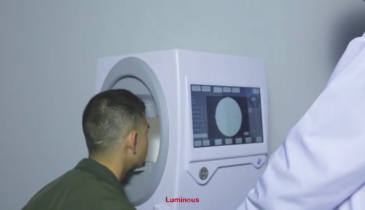

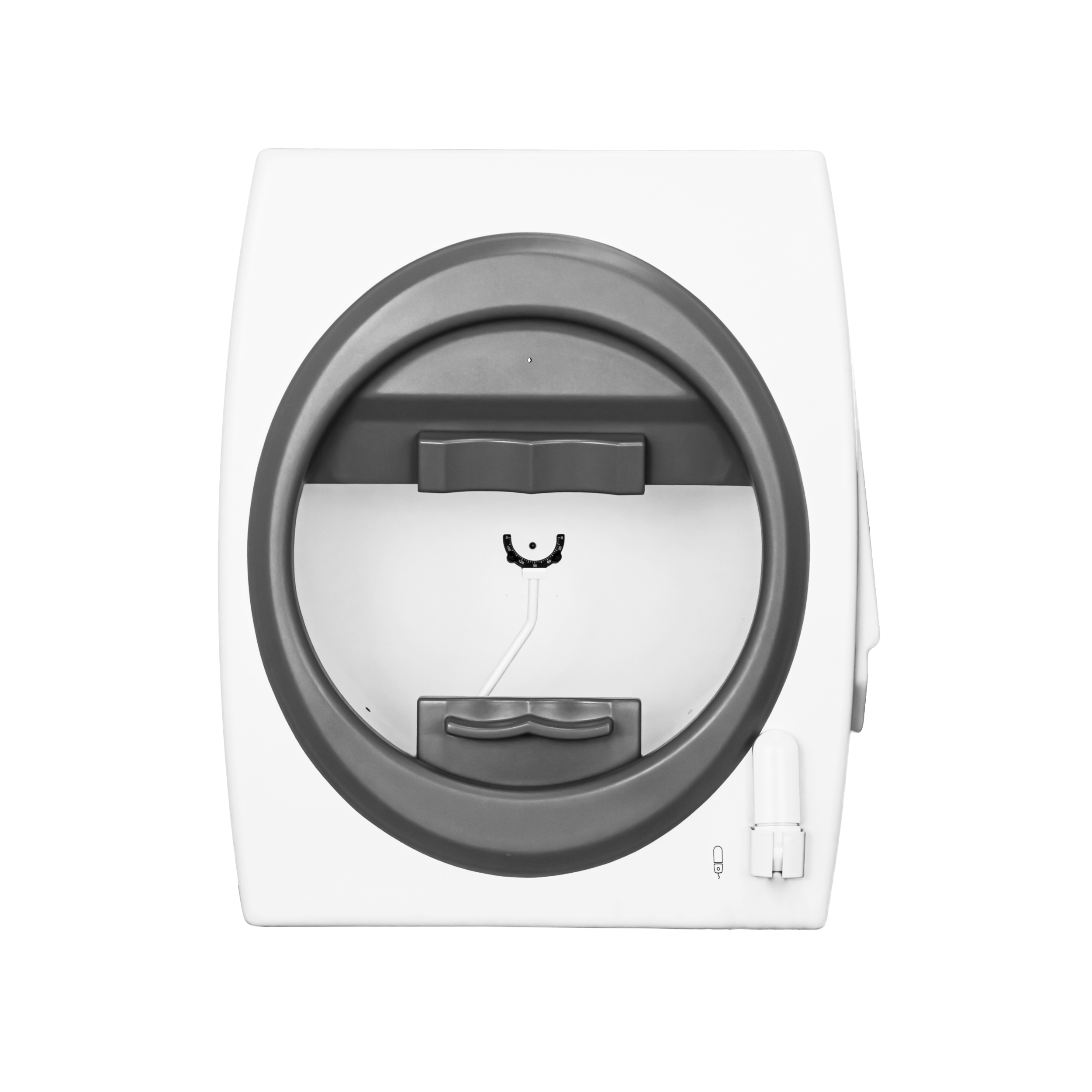

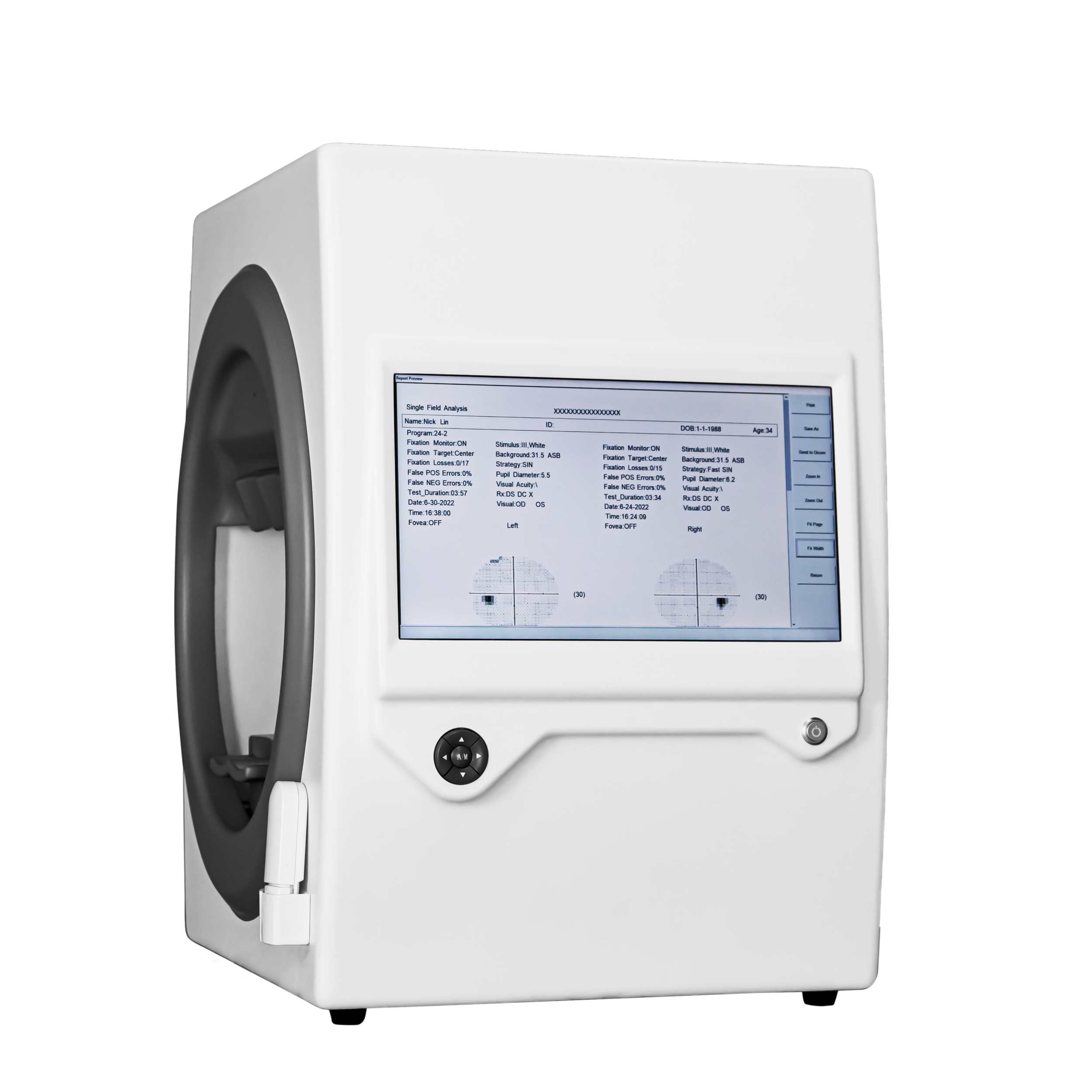

Sophisticated Visual Field Evaluation for Clinical Ophthalmic Applications
The SVF-9000 Automatic Perimeter is engineered to fulfill the rigorous testing demands of ophthalmic and optometry specialists conducting detailed visual field assessments. This ophthalmic equipment is targeted at clinical and diagnostic centers requiring high-precision detection of visual defects, such as glaucoma monitoring and optic neuropathy evaluation. Equipped with Auto Eye Recognition and automatic pupil diameter measurement, it streamlines patient alignment and test accuracy, accommodating diverse patient groups including pediatric and uncooperative individuals. Its robust design supports integration into standard clinical workflows where advanced visual diagnostics are essential.
Advanced Technical Specifications Ensuring Goldmann-Standard Accuracy
This Optical Instrument features both static and kinetic perimetry capabilities within a single device, delivering Goldman-standard testing through white-on-white illumination with a 456-point stimulus matrix across a 90-degree field of vision at a 30 cm test distance. Its premium LED light source with variable stimulus intensity (0.08 to 10,000 asb) ensures reliable detection thresholds. The system supports SWAP (short wavelength automated perimetry), using blue stimuli on a yellow background for early glaucoma detection. Running on Windows 10 with a 14-inch capacitive touchscreen, it offers DICOM 3.0 and USB data export, enabling integration with Electronic Medical Records (EMR) and hospital systems. This makes it a highly configurable ophthalmology equipment choice for specialized visual field mapping.
Integrating Comprehensive Visual Field Analysis into Ophthalmic Practice
The SVF-9000 serves as a cornerstone diagnostic tool within ophthalmology clinics and optical shops dedicated to vision care. Its dual static and kinetic testing modes allow comprehensive peripheral and central vision evaluation, essential for baseline visual field analysis and ongoing glaucoma progression monitoring. The device's automated functions facilitate consistent test reproducibility and reduce operator dependency, supporting high patient throughput environments. Its compatibility with standard Optometry equipment and alignment with clinical diagnostic protocols ensures that ophthalmic practitioners can reliably document and track visual field changes, ultimately enhancing patient management quality.
|
Product Name
|
Projection Perimeter Visual Field Analyzer
|
|
Model No.
|
SVF-9000
|
|
Stimulus Size and Color
|
Goldmann I, II, III, IV & V,Stimulus Color White,Blue,Red
|
|
1.Technical Data
DB Value Range: 0 ~ 51 dB
Stimulus Intensity Range: 0.08 asb ~ 10,000 asb
Stimulus Size: Goldmann Ⅰ,Ⅱ,Ⅲ,Ⅳ &Ⅴ
Stimulus Color: White,Blue,Red
Duration Time: 200ms/Adaptive Max Measurement Range: 90°
Test Distance: 30 cm
Test Mode: Static & Kinetic
Stimulus Quantity: 456 Points
Stimulus Plane: Aspherical Surface Background Illumination: White 31.5 asb (10cd/m2),Yellow (315 asb)
|
|
2.Advanced Software Operations
Advanced Options: Customize Test Program, Auto Eye Recognition, Blindzone Range Test
Stimulus Source: Halogen Chinrest Control: Touchscreen, Keyboard and Mouse Control, Button Control Head Movement: Chinrest and Headrest move simultaneously |
|
3.Computer Specification
CPU: 1.6 GHz

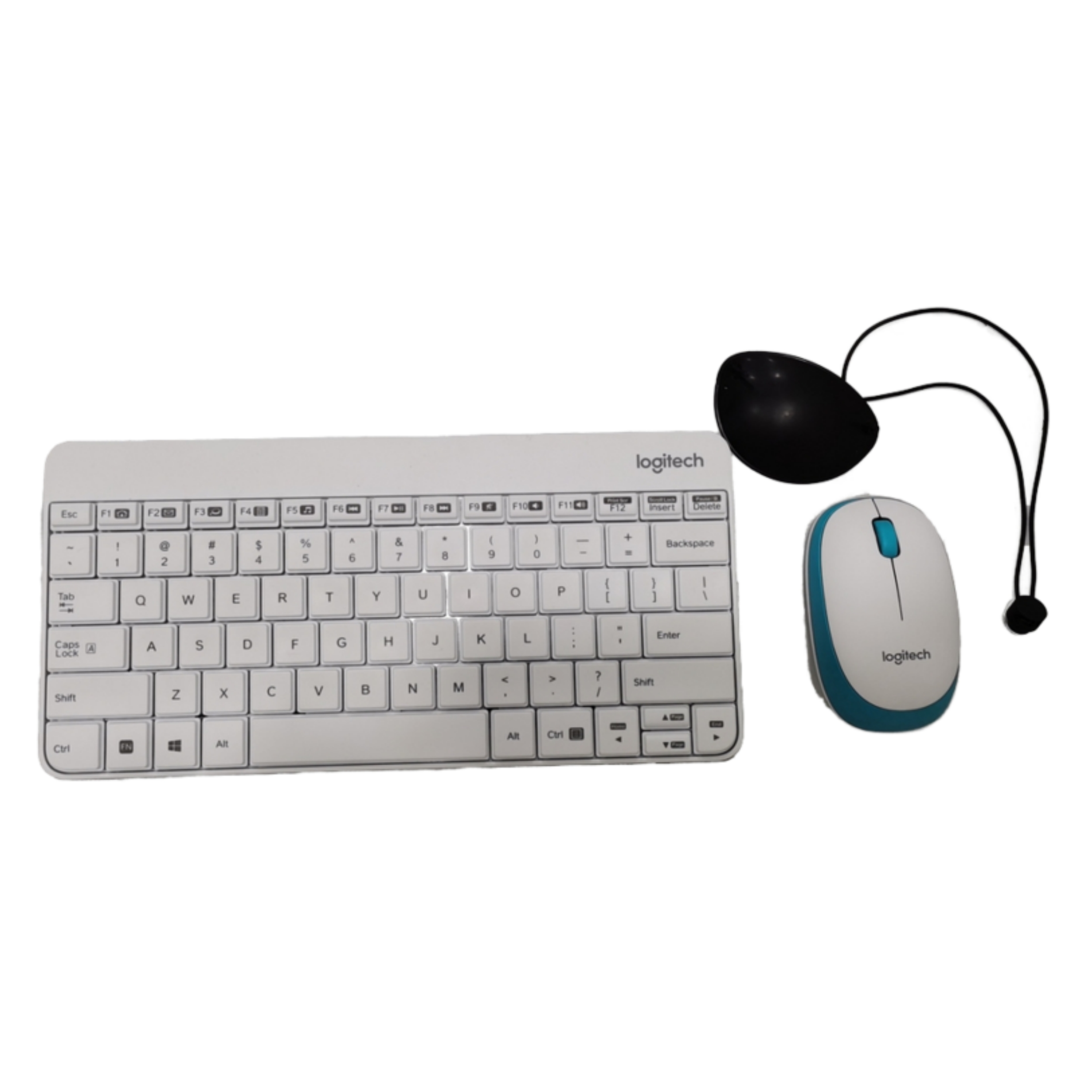

RAM: 4GB Hard Disk: 120GB Operational System: Windows 10 Display: 14” Capacitive Touch screen Network: Wi-Fi, Ethernet |
|
4.Data Export: Methods: DICOM 3.0, USB
|
|
5.Electrical and Environmental:Voltage/Frequency: AC 100V – 240V / 50 ~ 60 Hz
|
|
6.Test Report:
Classic Test report: Test report in Classic format, can be easily read and understood by doctors worldwide.
|
Product Advantages
Structural and System Design Advantages of the SVF-9000
The SVF-9000 employs modular design principles that unify static and kinetic perimetry into a compact, integrated unit optimized for clinical environments demanding versatile ophthalmic solutions. Its streamlined hardware architecture, including the 14-inch capacitive touchscreen and rugged housing, provides reliable durability and ease of maintenance. The embedded Auto Eye Recognition system and automated pupil diameter measurement enhance operational accuracy and reduce manual calibration errors—features critical in ophthalmology equipment used across diverse patient demographics. Connnectivity options such as Wi-Fi and Ethernet enable seamless interfacing with hospital networks and Electronic Health Records systems, positioning it as a comprehensive Optical Instrument within diagnostics suites.
Performance Efficiency and Usability Features Delivering Clinical Value
Designed with user ergonomics and workflow efficiency in mind, the SVF-9000 supports customizable test protocols and automatic blind-zone management to maximize throughput while minimizing operator intervention. The integration of SWAP testing facilitates early detection of glaucomatous damage, providing added clinical insight beyond conventional perimetry. Its high-resolution stimulus delivery and rapid adaptive response times ensure reproducible results critical for longitudinal patient follow-up. The system’s compatibility with standard data export formats like DICOM 3.0 enhances interoperability with existing Optometry equipment and imaging diagnostic devices, providing a smooth user experience and improving clinical decision-making processes.
Use Scenarios
Baseline Visual Field Testing in Ophthalmology Clinics
Within clinical ophthalmology and optometry environments, the SVF-9000 is integral to initial patient evaluations to establish visual field baselines. Its all-in-one static and kinetic perimetry capabilities enable comprehensive assessment under one device, reducing the need for multiple instruments and streamlining patient flow. The automated pupil diameter adjustments and eye recognition system permit efficient handling of patients with varying levels of cooperation and ocular conditions. This functionality enhances diagnostic reliability for conditions such as glaucoma and optic nerve dysfunction. The machine’s compatibility with standard clinical networks ensures that baseline measurements are readily stored and accessible for longitudinal comparison, making it a valued tool in high-volume ophthalmic equipment suites.
Role in Monitoring Glaucoma Progression and Optic Neuropathies
Specialized glaucoma management programs benefit from the SVF-9000’s capacity to track subtle visual field changes through its SWAP functionality and high-density stimulus grid. The dual-mode perimetry accommodates comprehensive peripheral vision mapping required for optic neuropathy surveillance. Data export via DICOM 3.0 facilitates integration with electronic patient records, supporting multi-disciplinary case management and telemedicine consultations. Its automated alignment ensures test reliability despite patient variability, while its robust design supports continuous clinical use. Integration with existing Optical shop equipment and diagnostic workflows allows clinicians to maintain consistent monitoring, essential for timely therapeutic adjustments and outcome optimization.
Why Choose Us
Luminous Vision Co. Ltd, our company is one stop shop for ophthalmology,optometry,and medical products.We have been in the field for 10+ years,have accumulated rich experience and customer satisfaction in the area.In our shop,you can get professional suggestions,comprehensive range of products and services to meet your every requirement.Whether it's products, services, or solutions, we have you covered.
FAQ
We are based in ChongQing, China, we provide one stop shop for ophthalmology, optometry, and medical products.We have been in the field of ophthalmology and optical since 2012,have accumulated rich experience in the area.In our shop,we will provide professional suggestions,different products and best service.You will save time and save money.
We have strict product process and quality control for every producing for every products. Always a pre-production sample before mass production;Always final Inspection before shipment;
One-stop shop for ophthalmology, optometry, and medical products.All kinds of ophthalmology, optometry products you needs.And also we provide good service for your products.
Throughout 12 years in business,we have built ourselves as a value-oriented,service minded,ophthalmic equipment distributor and glasses&lens process equipment with reputation.we become the "Chinese state-of-the-art ophthalmic instrument and your practice"
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish etc.
